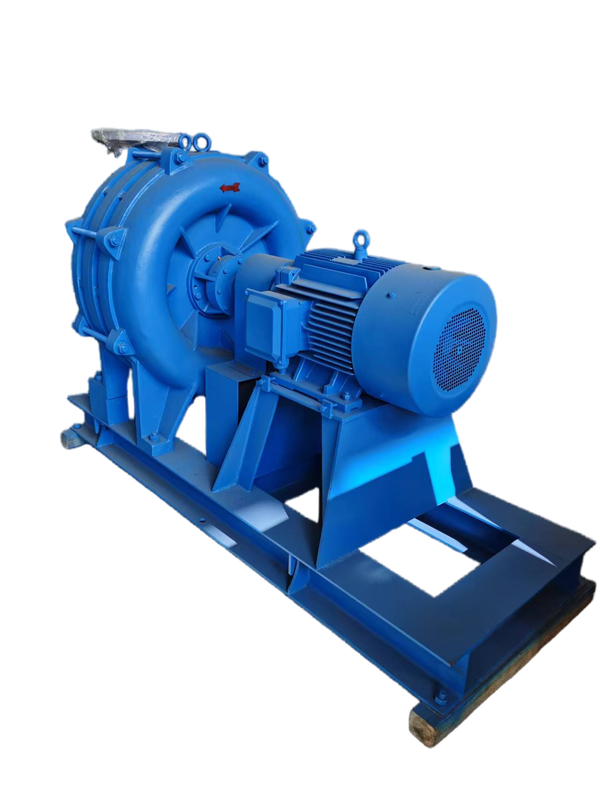

160m³/min Inlet Flow, Temp. 20℃, 2950 r/min Speed,167-280 Kw Shaft Power, Multi-stage chemical Industry Centrifugal Blower

160m³/min Inlet Flow, Temp. 20℃, 2950 r/min Speed,167-280Kw Shaft Power, Multi-stage chemical Industry Centrifugal Blower

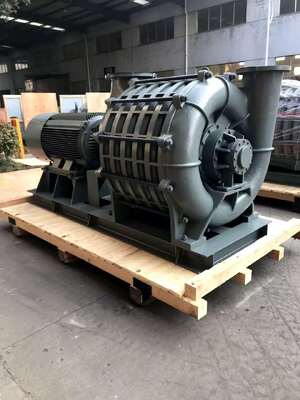

About D series multi-stage centrifugal blower


D series Multi-stage Centrifugal Blower is designed by famous institute in China and engineers of B-Tohin. The blower has several impellers connected by connection rod. The inlet air is compressed stage by stage and finally discharge air capacity from outlet.

Specifications

Main Characteristics

·Low noise: there is no mechanical friction during the air blowing operation, and reasonable blade profile is adopted to minimize the noise.

·Small vibration: the optimized impeller reduces the axial force to the minimum so that the whole machine can run smoothly.

·Non-mechanical friction machinery: no gear speed-up is required. The blower rotor is supported by two bearings at the front and rear. During operation, there is no mechanical friction between any parts except the bearings, so noise caused by mechanical friction is avoided, thus ensuring the longest service life of the blower host.

·Convenient adjustment of airflow: the adjustment range of the blower's airflow is 50%~100%, which is adjusted by operating the butterfly valve at the inlet.

·Oil-free machinery: no oil and gas will be generated during the pressurization process of the blower, so as to ensure that the aerator will not be corroded, and improve the service life of the aeration system.

.Water cooling is adopted for the rear bearing, which extend sits service life.

·Advanced technology adopted for the rotor for achieving with high strength and long service life.

Standard supply of scope

1. Blower main body

2. Inlet muffler (with air filter)

3. Public base for motor and blower(including coupling cover)

4. Inlet manual butterfly valve

5. Motor

6. Pressure gauge

7. Mounting bolts and connection accessories

8. Check valve

Company Brief

①In 1994,Yixing Pengde Machinery Co.,Ltd. ( a Sino-Japanese joint Venture) was born,and relocated in the Industrial Park for Environmental SCI and TECH. The following year with company name changed to B-Tohin Machine (Jiangsu)Co.,Ltd.

②Localization of HC blower in 1996.

③In 1999,established a joint venture named Tohin Machine Co.,Ltd. with TUTHILL Pneumatics Group (United States).

④Localization and mass sales of BK blower in 2000.

⑤In 2004,HC Blower and BK Blower got the honor of “new high-tech product”,and the company was rated as a high-tech enterprise. In the same year,the company passed ISO9001 certification,purchased more than 30000 square meters for new plant and donated 500000 yuan to build the B-Tohin Qinghu Hope Middle School.

⑥In 2009,the single-stage high-speed blower was successfully launched, and BK was rated as famous trademark of Wuxi City and famous trademark of Jiangsu Province.The torch program project of Jiangsu Province and a number of patents were achieved ,also the company’s together-with-heart idea: attentively,sincerely,confidently was put forward.

⑦The company’s BK brand was rated as “China Well-known Trademark” in 2013.

⑧In 2014,the company was identified as “Jiangsu Aerodynamic Research Center” by the Science &Technology Department of Jiangsu Province,and got the ISO14001 certificate.At the same time,Office Automation was put into use successfully.

⑨In 2015,the company introduced a whole blower performance test system.Successfully bid for the 2600 square meters industrial assets in Yixing economic development zone and established Wuxi B-Tohin Blower Technology Co.,Ltd.

⑩In 2016, Sino-Korean joint venture Wuxi B-Tohin & Ace Blower Science and Technology Co.,Ltd. was established. In the same year,air foil centrifugal blower was successfully introduced,and Tohin Vietnam Industry was founded.

⑪In 2017,the company turned on the Internet of things intelligent ,the balance tester of Air Bearing Turbo Centrifugal blower was successfully put into use .The Science and Technology Association of B-Tohin was founded.

⑫In 2018, B-Tohin magnetic suspension centrifugal blower,stainless steel blower and other new products were successfully launched.

⑬In2019,Adopted the ERP platform management in the whole company and passed the assessment of “Informational and Industrialize Integration” in 2019.

⑭B-Tohin screw blower was put on market successfully in 2021.

⑮Launched contract energy management and new type product lease sales in 2022.With a new area of 75000 square meters acquired, the project of design and intelligent manufacturing base of high efficiency blower and office building of B-Tohin started.
