Profesional Produsen Berbagai Jenis Blower

|
| Place of Origin: | China |
| Nama merek: | BK |
| Sertifikasi: | ISO9001/ISO14001 |
| Nomor model: | BV6008 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Harga: | Bisa dinegosiasikan |
| Packaging Details: | Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli |
| Delivery Time: | 5 to 20 working days, depends on order amount and specification |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80 SETS per month |
| Tipe: | vakum sauction, jenis akar | Kapasitas Udara: | 7.38-20.63m3 / mnt |
|---|---|---|---|
| Tekanan diferensial pelepasan: | -10KPA - -40KPA | Tenaga motor: | 3KW-22KW |
| Debit membosankan: | DN125 (5 ”) | Jenis pendingin: | Udara |
| Tipe didorong: | Digerakkan motor, dihubungkan dengan sabuk dan katrol | ||
| Menyoroti: | roots type vacuum pump,blower vacuum pump |
||
-30KPA Pompa Vakum Roots Blower, udara vakum menyampaikan akar blower
Tentang pompa vakum BK
BK vacuum pump is designed for vacuum use by changing the outlet and inlet of positive roots blower. Pompa vakum BK dirancang untuk penggunaan vakum dengan mengganti saluran keluar dan saluran masuk dari akar positif. Its vacuum pressure covers 10KAP to -40KPA. Tekanan vakumnya mencakup 10KAP hingga -40KPA. It is widely applied in food conveying, metallurgy, chemical industry and electronic coating. Ini banyak digunakan dalam pengangkutan makanan, metalurgi, industri kimia dan pelapisan elektronik. It is featured of stable operation and reliable performance. Ini fitur operasi yang stabil dan kinerja yang andal.
Spesifikasi
|
Model |
BV6008 |
| Dimensi saluran masuk | DN125 |
| Dimensi outlet | DN125 |
|
Kapasitas udara |
7.38-20.63 m3/ mnt |
|
Tekanan diferensial pelepasan |
-10 ~ -40KPA |
|
Kecepatan putar |
850-1800rpm |
|
Jenis motor |
3-22KW 380/400/415 / 440V, 3 FASE, 50/60 HZ |
|
Merek motor |
Standar: Siemens Beide atau motor Wannan Siemens dan ABB motor untuk pilihan Anda |
|
Jenis instalasi |
Standar: tipe horizontal. Jenis vertikal tersedia untuk pilihan Anda |
|
NW blower tanpa motor |
290kg |
|
Ukuran kemasan Approx. |
1,5 * 1,05 * 1,75 m (panjang * lebar * tinggi) |
Lembar parameter
| Model | Port Dia (MM) |
Kecepatan | Kapasitas saluran masuk (m3 / menit) dan daya poros (KW) | |||||||
| -0.1kgf / cm2 | -0.2kgf / cm2 | -0,3kgf / cm2 | -0,4kgf / cm2 | |||||||
| -1000mmH2O | -2000mmH2O | -3000mmH2O | -4000mmH2O | |||||||
| -0,01Mpa | -0.02Mpa | -0,03Mpa | -0,04Mpa | |||||||
| rpm | m3 / mnt | KW | m3 / mnt | KW | m3 / mnt | KW | m3 / mnt | KW | ||
| BV6008 | 125 (5 ") | 850 | 8.93 | 2.60 | 8.29 | 4.58 | 7.80 | 6.16 | 7.38 | 7.75 |
| 1000 | 10.78 | 3.05 | 10.13 | 5.39 | 9.64 | 7.24 | 9.22 | 9.11 | ||
| 1150 | 12.62 | 3.51 | 11,98 | 6.20 | 11.49 | 8.33 | 11.07 | 10.48 | ||
| 1250 | 13.85 | 3.82 | 13.21 | 6.74 | 12.72 | 9.05 | 12.30 | 11.39 | ||
| 1400 | 15.70 | 4.28 | 15.06 | 7.55 | 14.57 | 10.14 | 14.15 | 12.76 | ||
| 1500 | 16.93 | 4.58 | 16.29 | 8.08 | 15.80 | 10.86 | 15.38 | 13.67 | ||
| 1650 | 18.78 | 5.04 | 18.14 | 8.89 | 17.65 | 11,95 | 17.23 | 15.04 | ||
| 1800 | 20.63 | 5.50 | 19.99 | 9.70 | 19.49 | 13,04 | 19.08 | 16.40 | ||

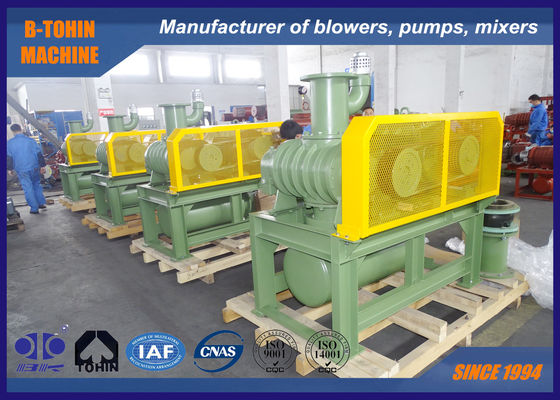

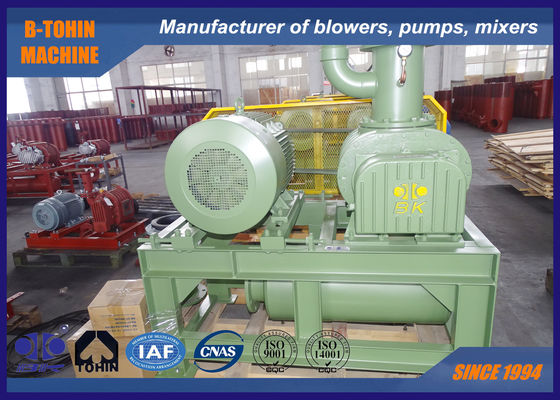

Merakit gambar paket blower
Pasokan standar ruang lingkup
1. blower tubuh utama
2. katup pengaman vakum
3. inlet peredam
4. stopkontak peredam
5. pangkalan publik (dengan penutup sabuk)
6. karet fleksibel sendi dan bantalan kejutan
7. blower katrol
8. pengukur tekanan
9. sabuk
10. baut dan mur dan bagian koneksi lainnya
11. motor
