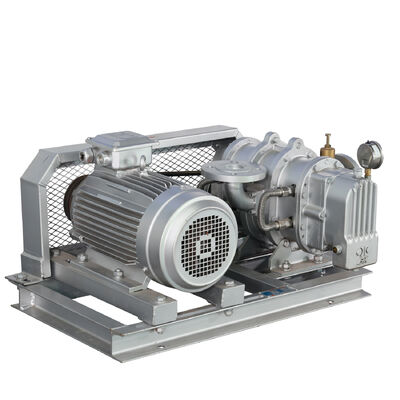

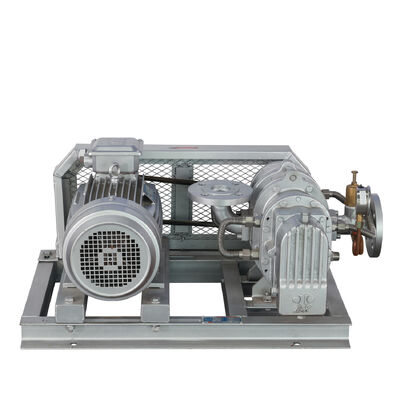

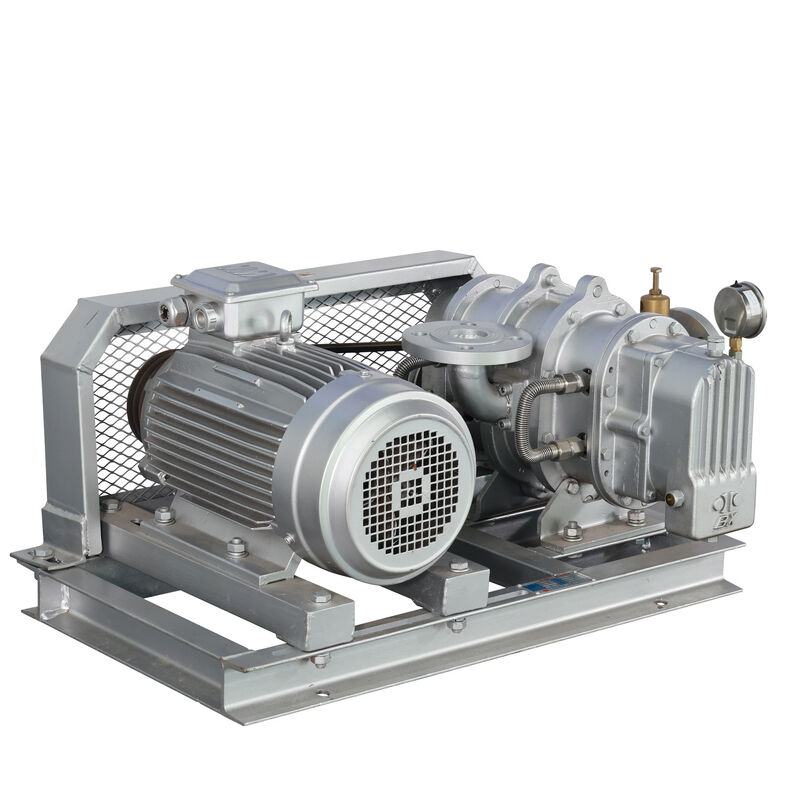

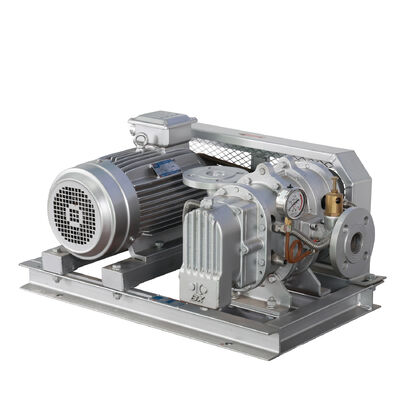

BX200 8'' 36.52-77.85 m³/min Stainless Steel Roots Blower
1,The main components of BX Roots blower are precisely machined from stainless steel.
2,Key components are processed by machining center at one time,and the dimensional tolerance is accurate to ensure the processing accuracy and the operation stability of the blower under different working conditions.
3,The impeller is made of stainless steel.The special strength and rigidity make the impeller meet the conditions of high speed continuous load without fatigue and deformation.
4,The sealing structure adopts a double mechanical sealing structure and a water cooling sealing system to achieve the reliability of the sealing under different harsh conditions, thus ensuring the leak-free operation of BX Roots blower.
Product Parameters
| Performance Parameters Sheet: |
Type |
Port Dia(MM) |
Speed |
Inlet airflow(m³／min) and shaft power(KW) at different conditions |
| 0.1kgf/c㎡ |
0.2kgf/c㎡ |
0.3kgf/c㎡ |
0.4kgf/c㎡ |
0.5kgf/c㎡ |
0.6kgf/c㎡ |
0.7kgf/c㎡ |
| 1000mmH₂O |
2000mmH₂O |
3000mmH₂O |
4000mmH₂O |
5000mmH₂O |
6000mmH₂O |
7000mmH₂O |
| 0.01Mpa |
0.02Mpa |
0.03Mpa |
0.04Mpa |
0.05Mpa |
0.06Mpa |
0.07Mpa |
| rpm |
m³/min |
KW |
m³/min |
KW |
m³/min |
KW |
m³/min |
KW |
m³/min |
KW |
m³/min |
KW |
m³/min |
KW |
| BX200 |
200(8") |
850 |
16.42 |
4.55 |
15.55 |
7.97 |
14.88 |
10..84 |
14.33 |
14.33 |
13.83 |
18.05 |
13.40 |
21.54 |
12.88 |
23.43 |
| 900 |
19.68 |
5.35 |
18.81 |
9.37 |
18.14 |
12.76 |
17.60 |
16.86 |
17.10 |
21.23 |
16.66 |
25.34 |
16.25 |
26.99 |
| 1000 |
22.95 |
6.15 |
22.08 |
10.78 |
21.40 |
14.67 |
20.86 |
19.39 |
20.36 |
24.42 |
19.92 |
29.14 |
19.51 |
31.04 |
| 1050 |
25.12 |
6.69 |
24.25 |
11.72 |
23.58 |
15.95 |
23.03 |
21.08 |
22.53 |
26.54 |
22.10 |
31.67 |
21.69 |
33.74 |
| 1150 |
28.39 |
7.49 |
27.52 |
13.12 |
26.84 |
17.86 |
26.30 |
23.61 |
25.80 |
29.73 |
25.36 |
35.48 |
24.95 |
37.79 |
| 1250 |
30.56 |
8.03 |
29.69 |
14.06 |
29.02 |
19.14 |
28.47 |
25.30 |
27.97 |
31.85 |
27.54 |
38.01 |
27.12 |
40.49 |
| 1400 |
72.35 |
33.57 |
70.45 |
42.81 |
68.99 |
52.05 |
67.75 |
61.29 |
66.67 |
70.53 |
65.69 |
79.76 |
|
|
| 1500 |
77.85 |
35.97 |
75.94 |
44.72 |
74.48 |
55.77 |
73.25 |
65.67 |
72.16 |
75.56 |
71.18 |
85.46 |
|
|
Outline Dimension
Outline Dimension Sheet
| Model |
Port Dia.(DN) |
Motor Power (kw) |
A |
B |
B1 |
C |
D |
E |
F |
G |
H |
R |
I |
J |
K |
L |
M |
N |
P |
Foundation Bolts |
Weight(kg) |
| BX200 |
8" |
22~90KW |
1800 |
1420 |
710 |
190 |
624 |
1150 |
580 |
620 |
1895 |
220 |
28 |
462 |
386 |
905 |
190 |
1000 |
24 |
6-M16x400 |
820 |
Sample Use
Main Products
FAQ
Q1. Are you manufacturer or trading company?
We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.
Q2: Where is your factory located? May I have a visit?
Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.
Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
Q4: What is your warranty?
Our warranty is 12 months after received the machine.
Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.
Q7.Does your machine with CE certificate?
Yes.We have CE certificate,we will offer it if you need.
Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
