Profesional Produsen Berbagai Jenis Blower
 |
| Tempat asal: | China |
| Nama merek: | BK |
| Sertifikasi: | ISO9001/ISO14001/CE |
| Nomor model: | BV8024 |
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | Negotiation |
| Kemasan rincian: | Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli |
| Waktu pengiriman: | 5 to 20 working days, depends on order amount and specification |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 80 SETS per month |
| Tipe: | vakum sauction, jenis akar | Kapasitas Udara: | 26.22-73.81m3 / mnt |
|---|---|---|---|
| Tekanan diferensial pelepasan: | -10KPA - -40KPA | Tenaga motor: | 15KW-75KW |
| Debit membosankan: | DN250 (10 ") | Jenis pendingin: | Udara |
| Tipe didorong: | Digerakkan motor, dihubungkan dengan sabuk dan katrol | ||
| Cahaya Tinggi: | roots type vacuum pump,air blower pump |
||

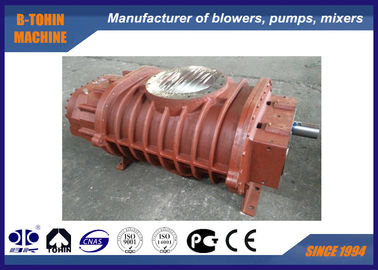

DN250 Roots Blower Vacuum Pump, vakum -40KPA, pelapis akar pelapis elektronik
Tentang pompa vakum BK
BK vacuum pump is widely applied in vacuum application in food conveying, metallurgy, chemical industry,electronic coating and other industries. Pompa vakum BK secara luas diterapkan dalam aplikasi vakum dalam pengangkutan makanan, metalurgi, industri kimia, pelapisan elektronik dan industri lainnya. It is composed of blower main body, inlet silencer, out silencer, vacuum pressure gage, vacuum relief valve and other necessary accessories. Ini terdiri dari badan utama blower, peredam masuk, peredam keluar, pengukur tekanan vakum, katup pelepas vakum dan aksesori lain yang diperlukan.
Blower acoustic enclosure and control cabinet and other connection parts are available. Kandang akustik dan kabinet kontrol blower dan komponen koneksi lainnya tersedia. OEM and customized goods are available. OEM dan barang-barang yang disesuaikan tersedia.
Spesifikasi
Model | BV8024 |
| Dimensi saluran masuk | DN250 |
| Dimensi outlet | DN250 |
Kapasitas udara | 26.22-73.81 m3/ mnt |
Tekanan diferensial pelepasan | -10 ~ -40KPA |
Kecepatan putar | 700-1500rpm |
Jenis motor | 15KW-75KW |
Merek motor | Standar: Siemens Beide atau motor Wannan |
| Tingkat efisiensi motor | IE3 |
| Kelas isolasi moror | F, kenaikan suhu B |
| Kelas perlindungan motor | IP55 |
Jenis instalasi | Standar: tipe horizontal. |
NW blower tanpa motor | 900kg |
Ukuran kemasan Approx. | 2.35 * 1.65 * 2.5m (panjang * lebar * tinggi) |
Lembar parameter
| Model | Port Dia (MM) | Kecepatan | Kapasitas saluran masuk (m3 / menit) dan daya poros (KW) | |||||||
| -0.1kgf / cm2 | -0.2kgf / cm2 | -0,3kgf / cm2 | -0,4kgf / cm2 | |||||||
| -1000mmH2O | -2000mmH2O | -3000mmH2O | -4000mmH2O | |||||||
| -0,01Mpa | -0.02Mpa | -0,03Mpa | -0,04Mpa | |||||||
| rpm | m3 / mnt | KW | m3 / mnt | KW | m3 / mnt | KW | m3 / mnt | KW | ||
| BV8024 | 250 (10 ") | 700 | 31.60 | 11.24 | 29.33 | 17.47 | 27.64 | 23.27 | 26.22 | 26.61 |
| 850 | 39.51 | 13.65 | 37.25 | 21.22 | 35.56 | 28.25 | 34.13 | 32.31 | ||
| 1000 | 47.43 | 16.06 | 45.16 | 24.96 | 43.47 | 33.24 | 42.05 | 38.01 | ||
| 1150 | 55.34 | 18.46 | 53.07 | 28,71 | 51.38 | 38.23 | 49,96 | 43.71 | ||
| 1250 | 60.62 | 20,07 | 58.35 | 31.20 | 56.66 | 41.55 | 55.24 | 47.51 | ||
| 1400 | 68.53 | 22.48 | 66.26 | 34,95 | 64.57 | 46.54 | 63.15 | 53.21 | ||
| 1500 | 73.81 | 24.08 | 71.54 | 37.44 | 69.85 | 49.86 | 68.42 | 57,01 | ||
Merakit gambar paket blower
Pasokan standar ruang lingkup
1. blower tubuh utama
2. katup pengaman vakum
3. inlet peredam
4. stopkontak peredam
5. pangkalan publik (dengan penutup sabuk)
6. karet fleksibel sendi dan bantalan kejutan
7. blower katrol
8. pengukur tekanan
9. sabuk
10. baut dan mur dan bagian koneksi lainnya
11. motor
