Tempat asal: | China |
Nama merek: | BK |
Sertifikasi: | ISO9001/ISO14001 |
Nomor model: | D50-1.8 |
Kuantitas min Order: | 1 set |
---|---|
Harga: | Negotiation |
Kemasan rincian: | Export standard wooden case |
Waktu pengiriman: | 20-40 working days, depends on order amount and specification |
Syarat-syarat pembayaran: | L/C, T/T |
Menyediakan kemampuan: | 10 SETS per month |
Kapasitas Udara: | 50m3 / mnt | Tekanan diferensial pelepasan: | 80KPA |
---|---|---|---|
Tenaga motor: | 90kw | Debit membosankan: | DN200 (8 ") |
Jenis pendingin: | air | Tipe didorong: | Kopel |
Aplikasi: | pengolahan limbah, tungku peleburan, pabrik persiapan batubara, floatation tambang, gas kimia, indus | ||
Cahaya Tinggi: | high pressure centrifugal blower,centrifugal air blower |

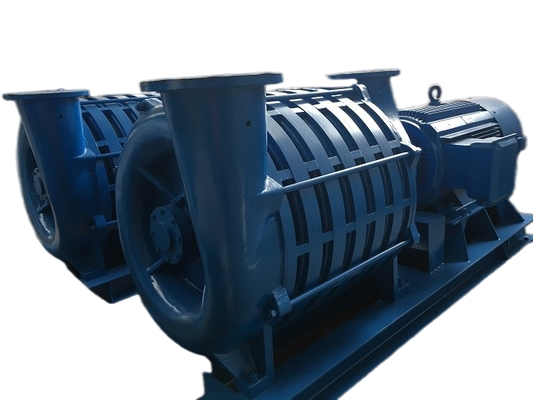

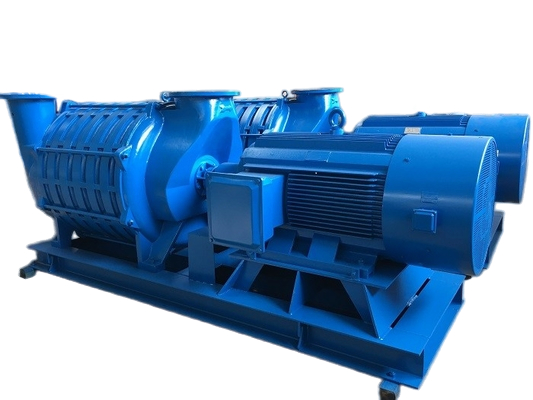

3000m3/h Multistage Centrifugal Blower, air generator for sewage aeration
About D series multi-stage centrifugal blower
D series Multi-stage Centrifugal Blower is designed by famous institute in China and engineers of B-Tohin. The blower has several impellers connected by connection rod. The inlet air is compressed stage by stage and finally discharge air capacity from outlet.
.
Specifications
Model No. |
D50-1.8 |
Discharge differential pressure |
80KPA |
Motor power |
90KW |
Air capacity |
50m3/min |
Motor type |
380/400/415/440V, 3PHASES, 50/60HZ |
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
Features
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. Blower main body
2. Inlet muffler (with air filter)
3. Public base for motor and blower(including coupling cover)
4. Inlet manual butterfly valve
5. Motor
6. Pressure gauge
7. Mounting bolts and connection accessories
8. Check valve
Dimensions of blower
Horizontal flow direction | ||
Vertical flow direction |
1. blower base 2. blower main body 3. inlet silencer 4. butterfly valve 5. coupling 6. electric motor
Model | Size(mm) | ||
A | B | C | |
D50-1.8 | 1246 | 1285 | 2630 |
