Profesional Produsen Berbagai Jenis Blower

Rumah ProdukMultistage Sentrifugal Blower

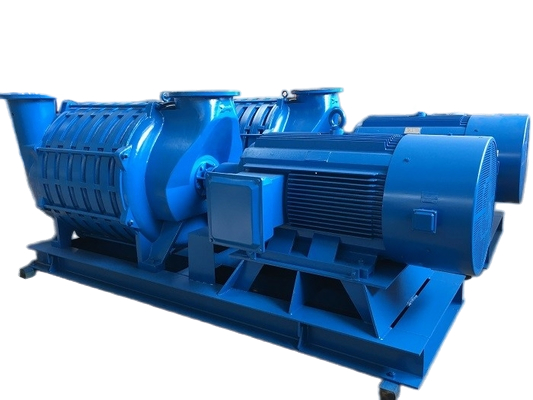

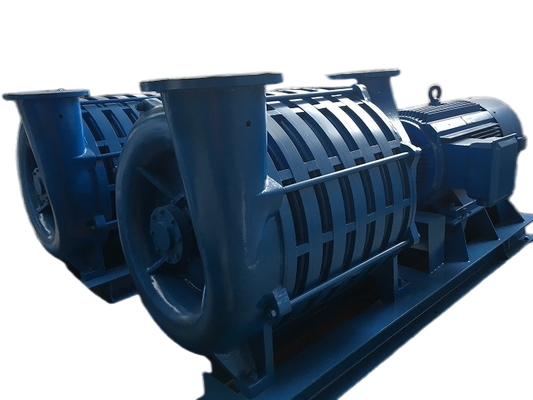

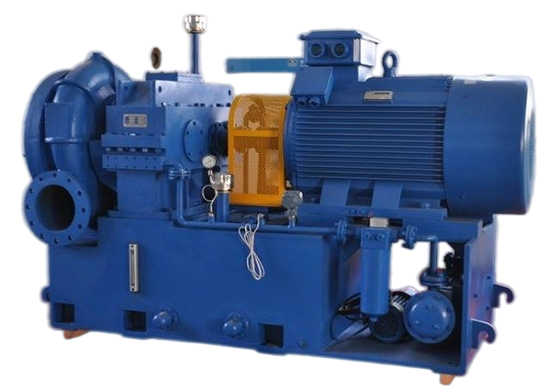

65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower

65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower

  • 65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower
65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower
Detail produk:
Place of Origin: China
Nama merek: BK
Sertifikasi: ISO9001/ISO14001
Model Number: D40-1.65
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 20-40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 10 SETS per month
Kontak
Detil Deskripsi produk
Kapasitas Udara: 40m3 / mnt Tekanan diferensial pelepasan: 65KPA
Tenaga motor: 75KW Debit membosankan: DN200 (8 ")
Jenis pendingin: air Tipe didorong: Sabuk
Aplikasi: pengolahan limbah, tungku peleburan, pabrik persiapan batubara, floatation tambang, gas kimia, indus
Cahaya Tinggi:

multi stage centrifugal blowers

,

centrifugal air blower





65KPA Multistage Centrifugal Blower for Mining flotation, centrifugal compressor






About D series multi-stage centrifugal blower


  • Conveying medium: clean air, natural gas, bio gas, methane, hydrogen, nitrogen, etc.
  • Material of impeller: casting steel & aluminum alloy
  • Cooling method: air cooling or water cooling
  • Driving method:  belt transmission
  • Application: Water and waste water treatment, vacuum dust cleaning, air knife drying, the flotation and separation, zinc plating and electroplating, oxygen filling, paper making and printing, and air combustion etc. fields.






Specifications



Model No.

D40-1.65

Discharge differential pressure

65KPA

Air capacity

40m3/min

Motor power

75KW

Shaft power

58KW

Motor type

380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option






Features



Adopt optimizing design to the impeller and the blower casings to minimize the flow loss.



Use sealing diversion technology to the inlet of the impeller to improve the inlet flow ability.





Apply flow analysis technique to optimize the blower performance and improve the stage efficiency to above 78%.



Apply 3D Flow Impellers to some models of C blowers.



Carry out strict dynamic balance to get low vibration, low noise, and high reliability.



Select advanced blower structure design to make an easy installation, operation and maintenance.






Structure of blower main body



65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower 0










Assembling drawing of blower package



65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower 1



Standard supply of scope



1. Blower main body

2. Inlet muffler (with air filter)

3. Public base for motor and blower(including coupling cover)

4. Inlet manual butterfly valve

5. Motor

6. Pressure gauge

7. Mounting bolts and connection accessories

8. Check valve
