Profesional Produsen Berbagai Jenis Blower
 |
| Tempat asal: | China |
| Nama merek: | BK |
| Sertifikasi: | ISO9001/ISO14001 |
| Nomor model: | D30-1.7 |
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | Negotiation |
| Kemasan rincian: | Export standard wooden case |
| Waktu pengiriman: | 20-40 working days, depends on order amount and specification |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 10 SETS per month |
| Kapasitas Udara: | 30m3 / mnt | Tekanan diferensial pelepasan: | 70KPA |
|---|---|---|---|
| Tenaga motor: | 55kw | Debit membosankan: | DN200 (8 ") |
| Jenis pendingin: | air | Tipe didorong: | Kopel |
| Aplikasi: | pengolahan limbah, tungku peleburan, pabrik persiapan batubara, floatation tambang, gas kimia, indus | ||
| Cahaya Tinggi: | multi stage centrifugal blowers,high pressure centrifugal blower |
||

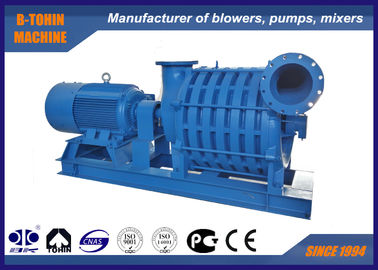

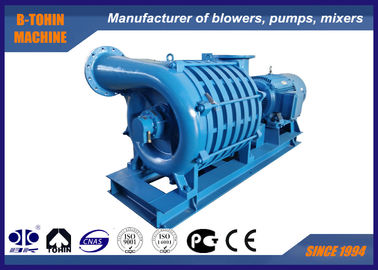

70KPA Multistage Centrifugal Blower for Mining flotation, centrifugal compressor
About D series multi-stage centrifugal blower
B-TOHIN is a professional manufacturer of various kinds of blowers. The multi-stage centrifugal blower we produced contains blower main body and matched motor. Also control system is available and can be customized upon customers' requests..
Specifications
|
Model No. |
D30-1.7 |
|
Discharge differential pressure |
70KPA |
|
Air capacity |
30m3/min |
|
Motor power |
55KW |
|
Shaft power |
43KW |
|
Motor type |
380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ |
|
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
Features
1. Compact structure, elegant appearance, high stability, convenient installation and maintenance
2. Smooth operation:optimized high-efficiency impeller decreases the axial force to the minimum. And after static and dynamic balance, the blower can run more smoothly
3. Low noise: no mechanical friction and reasonable blade curve ensures low noise
4. Oil-free Blower
5. Impeller is featured with special composite linear to reduce internal leakage and improve volumetric efficiency.
6. Easy to be adjusted
7. Inlet rings are equipped for impeller of every stage, and labyrinth seals are set between stages and at the two ends of housing for preventing gas leakage.
8. air cooling and water cooling designed for exhaust bearing pedestal, prolonged bearing service life.
9. Bearing temperature alarm
10. Blower and motor connected by coupling, other connection methods available according to different technique requirements.
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. Blower main body
2. Inlet muffler (with air filter)
3. Public base for motor and blower(including coupling cover)
4. Inlet manual butterfly valve
5. Motor
6. Pressure gauge
7. Mounting bolts and connection accessories
8. Check valve
