Profesional Produsen Berbagai Jenis Blower
 |
| Tempat asal: | China |
| Nama merek: | BK |
| Sertifikasi: | ISO9001/ISO14001 |
| Nomor model: | BV5006 |
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | Negotiation |
| Kemasan rincian: | Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli |
| Waktu pengiriman: | 5 to 20 working days, depends on order amount and specification |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 80 SETS per month |
| Tipe: | vakum sauction, jenis akar | Kapasitas Udara: | 3.72-12.51m3 / mnt |
|---|---|---|---|
| Tekanan diferensial pelepasan: | -10KPA - -40KPA | Tenaga motor: | 2.2-15KW |
| Debit membosankan: | DN100 (4 ") | Jenis pendingin: | Udara |
| Tipe didorong: | Digerakkan motor, dihubungkan dengan sabuk dan katrol | ||
| Cahaya Tinggi: | air blower pump,blower vacuum pump |
||

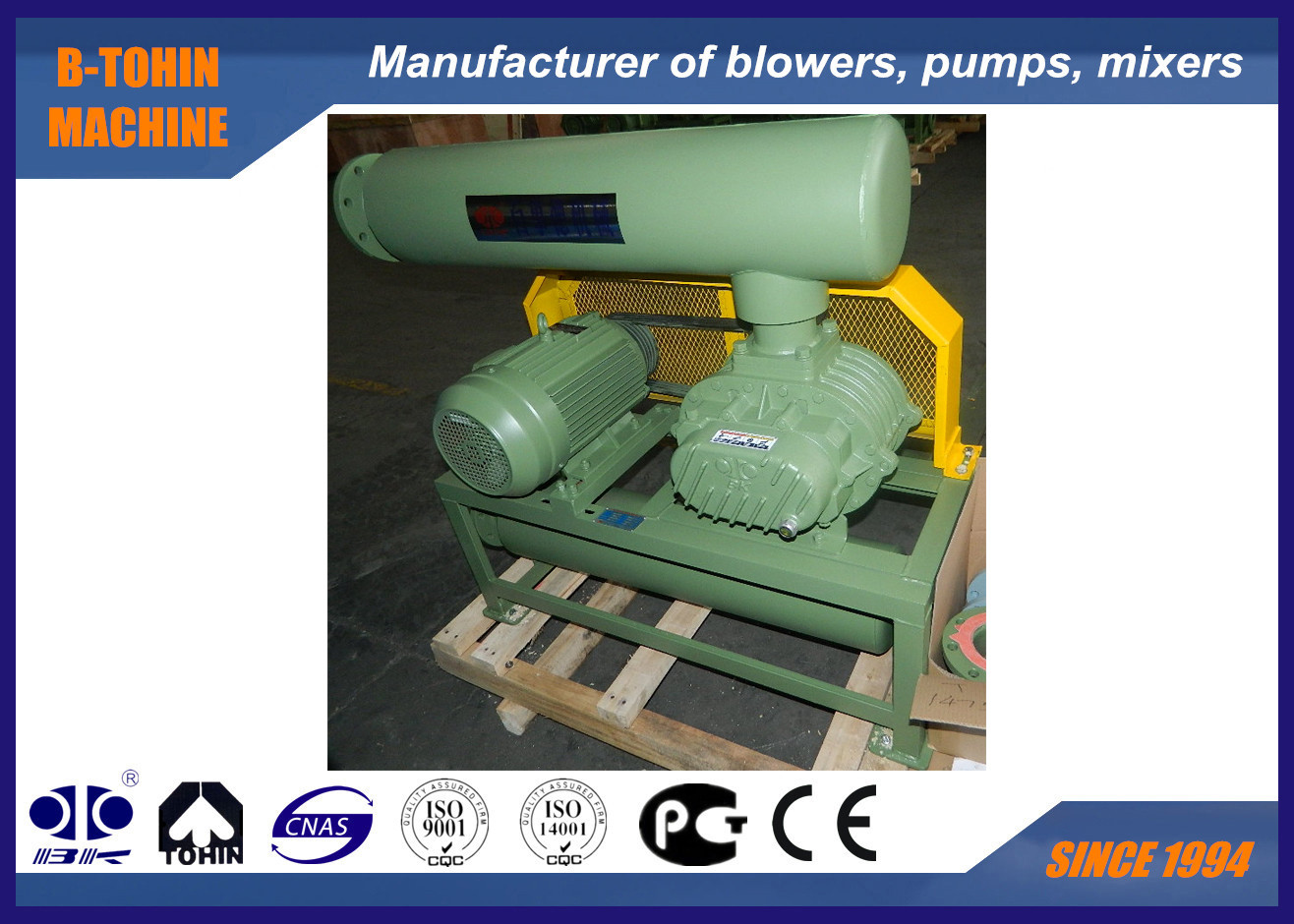

Rotary Vacuum Blower Roots Blower, -40KP, blower vakum yang digerakkan motor
Tentang pompa vakum BK
BK vacuum pump is designed for -10KAP to -40KPA vacuum use. Pompa vakum BK dirancang untuk penggunaan vakum -10KAP hingga -40KPA. It is widely applied in food conveying, metallurgy, chemical industry and electronic coating. Ini banyak digunakan dalam pengangkutan makanan, metalurgi, industri kimia dan pelapisan elektronik. It is featured of stable performance and compact structure. Ini fitur kinerja yang stabil dan struktur kompak.
Spesifikasi
|
Model |
BV5006 |
|
Kapasitas udara |
3,72-12,51 m3/ mnt |
|
Tekanan diferensial pelepasan |
-10 ~ -40KPA |
|
Kecepatan putar |
850-2000 rpm |
|
Jenis motor |
2.2-15KW 380/400/415 / 440V, 3 FASE, 50/60 HZ |
|
Merek motor |
Standar: Siemens Beide atau motor Wannan Siemens dan ABB motor untuk pilihan Anda |
|
Jenis instalasi |
Standar: tipe horizontal. Jenis vertikal tersedia untuk pilihan Anda |
|
NW blower tanpa motor |
204kg |
|
Ukuran kemasan Approx. |
1,5 * 1,05 * 1,75 m (panjang * lebar * tinggi) |
Lembar parameter
<
| Model | Port Dia (MM) |
Kecepatan | Kapasitas saluran masuk (m3 / menit) dan daya poros (KW) | |||||||
| -0.1kgf / cm2 | -0.2kgf / cm2 | -0,3kgf / cm2 | -0,4kgf / cm2 | |||||||
| -1000mmH2O | -2000mmH2O | -3000mmH2O | -4000mmH2O | |||||||
| -0,01Mpa | -0.02Mpa | -0,03Mpa | -0,04Mpa | |||||||
| rpm | m3 / mnt | KW | m3 / mnt | KW | m3 / mnt | KW | m3 / mnt | KW | ||
| BV5006 | 100 (4 ") | 850 | 4.74 | 1.51 | 4.32 | 2.54 | 3,99 | 3.84 | 3.72 | 4.41 |
| 1000 | 5.75 | 1.78 | 5.33 | 2.98 | 5.01 | 4.52 | 4.74 | 5.19 | ||
| 1150 | 6.77 | 2.04 | 6.35 | 3.43 | 6.02 | 5.20 | 5.75 | 5.97 | ||
| 1250 | 7.44 | 2.22 | 7.02 | 3.73 | 6.70 | 5.65 | 6.43 | 6.49 | ||
| 1350 | 8.12 | 2.40 | 7.70 | 4.03 | 7.37 | 6.11 | 7.10 | 7.01 | ||
| 1500 | 9.13 | 2.66 | 8.71 | 4.47 | 8.39 | 6.78 | 8.12 | 7.79 | ||
| 1600 | 9,81 | 2.84 | 9.39 | 4.77 | 9.06 | 7.24 | 8.79 | 8.31 | ||
| 1750 | 10.82 | 3.11 | 10.40 | 5.22 | 10.08 | 7.91 | 9,81 | 9.09 | ||
| 1850 | 11.50 | 3.29 | 11.08 | 5.52 | 10.75 | 8.37 | 10.48 | 9.61 | ||
| 2000 | 12.51 | 3.55 | 12.09 | 5.97 | 11.77 | 9.05 | 11.50 | 10.39 | ||

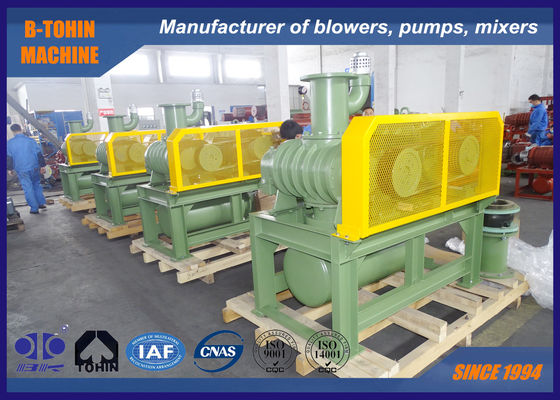

Merakit gambar paket blower
Pasokan standar ruang lingkup
1. blower tubuh utama
2. katup pengaman vakum
3. inlet peredam
4. stopkontak peredam
5. pangkalan publik (dengan penutup sabuk)
6. karet fleksibel sendi dan bantalan kejutan
7. blower katrol
8. pengukur tekanan
9. sabuk
10. baut dan mur dan bagian koneksi lainnya
11. motor
